FEY KIDS

€xx

Public Price incl.Tax - Delivery and Warranty Included

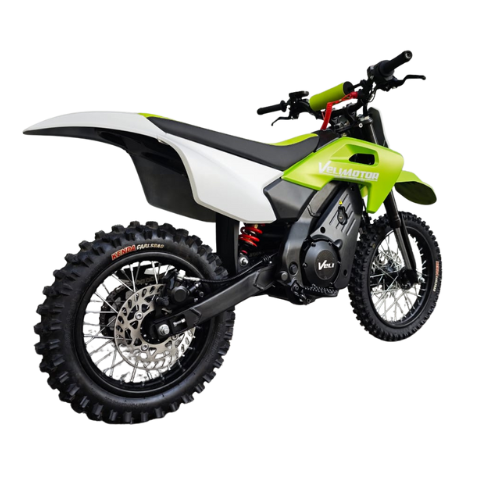

• FAY ELECTRIC KIDS DIRTBIKE for 6 years to 12 years old
• Vehicle platform voltage: 48V
• Drive motor status: BLDC
• Motor Power: rate 1.5kw/peak 5kw
• Controller status: Vector control
• Maximum Torque: 25N.m
• Torque on the drive wheel: 120N.m
• transmission ratio: 5.1
• communication mode CAN communication
• maximum speed: 50km/h
• Overall vehicle weight (including battery) :48kg
• maximum load: 50kg
• 0-40km acceleration:3.6S
• Lithium battery status: LG 48V20ah(960wh) quick removable
• Battery weight: 5.8kg
• Electronic control mode: Three gears are available
• Three gears mode: 1-gear 20km/h, 2-gear 35km/h, 3-gear 50km/h
• charger:5A
• Charging time(10%-90%): about 3 hours
• kind of drive: chain
• Range(25km/h) : 60km
• Range time: 2 hours
• Specifications of the front rim: 1.4*14
• Rear rim specifications: 1.85*12
• Specifications of the front tire：60/100-14
• Rear tire specification:80/100-12
• brake type: Front/back disc
• brake mode: Front hand/back hand
• Front shock absorption form: Inverted/stroke 90mm
• Rear shock absorption form: Center position/Adjustable/Travel 40mm
• Rear suspension form: Center set type
• Form of vehicle frame: Forged hybrid cradle frame
• overall dimensions:1460*680*900mm
• seat height: 629mm to 647mm
• minimum ground clearance:200mm
• wheel base:1385mm
• Number of occupants:1 person
• Suitable for terrain: Sandy land, forested land, muddy ground
